Ultra 180 Arm with Flip Up Keyboard Tray

The ICW Ultra 180 Arm with Flip Up Keyboard Tray is the only mount with a full 180° of vertical rotation at the arm.  Its patent pending design also has versatility with a rotating monitor via its ball VESA and a tilting keyboard tray that flips up to 90° to stow at the monitor.  The mount's arm channels conceal and protect cables, creating a more professional look, while the mount's built in rotation stops prevent wires from twisting.  The Ultra 180 stows close to the wall, making it the perfect choice for tight spaces.  Engineered, manufactured and assembled in the USA.

​

To Customize This Mount, Call: 704-442-2946

Customization Options Include:

  • Color

  • Mount Configurations For: Ceiling, Desk, Pole, Wall & Wall Track

  • Mount Additions and Simplifications

    • &  Much More



*Available in 5 Colors*

​

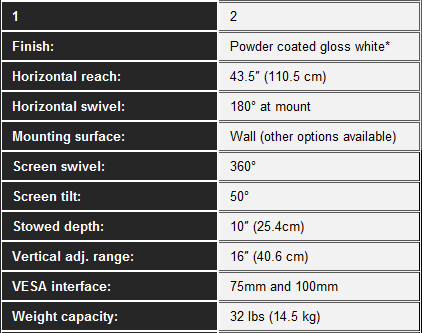

Specifications

Part #: UL180EV7-W3-KUB-A1

Fully Adjustable Monitor
This mounting arm is configured with the EV710 monitor mount which enables the LCD to adjust 6″ (15.2 cm) vertically on sliding rails. ICW’s ball VESA attachment enables 6-way tilt and rotate of the monitor. The monitor tilts, swivels and rotates, reducing screen glare and easing neck, back and eye strain.

​

Design Features



  • The Ultra 180 computer mounting arm supports up to 32 lbs (14.5 kg) and can be custom configured to meet your needs.

  • Monitor and keyboard can be positioned exactly where needed for best ergonomics, avoiding potential repetitive stress injuries.

  • The Ultra 180 Arm enables an LCD and keyboard to be suspended on a 3” wide wall mount, pulled out when required, and stowed out of the way when not in use.

  • Internal cable management protects wires from damage.

​

Monitor Adjustability



  • Monitor rotates to portrait position to eliminate scrolling.

  • The monitor adjusts 6″ (15.24 cm) vertically on sliding rails for precise positioning.

  • ICW’s ball VESA attachment enables 6-way tilt and rotate of the monitor.

  • The monitor rotates independently from the keyboard tray.

​

Keyboard Adjustability



  • The keyboard tray swivels independently from the monitor.

  • The keyboard tray adjusts easily to positive, neutral and negative tilt for greatest ergonomic comfort.

  • The keyboard tray flips up 90 degrees to stow compactly next to the monitor.

​

Arm Adjustability



  • The Ultra 180 Arm provides up to 16″ (40.6 cm) of vertical adjustment.

  • Configured with the Ultra A1 arm and a flip-up keyboard tray, the arm reaches 43.5″ (110.5 cm) horizontally.

  • The arm and keyboard tray stow compactly 10″ (25.4 cm) from the wall.

  • The arm rotates 180° at the wall mount for unsurpassed reach in all directions.

​
